gle/IGU/Gxx/001
Robust Multi Constellation GNSS Receivers
Available Features (*) - Compact and robust construction - GPS L1/L2/L2C/L5 + GLONASS L1/L2 + Galileo E1/E5A - WASS/EGNOS (SBAS) - Spectrum monitoring - Receiver Autonomous Integrity Monitoring (RAIM) - Advanced Multi-path Reduction - In-band interference rejection - Update rate up to 100Hz - RTK rate up to 100Hz - Heading determination - Code Differential Rover & Code Differential Base |

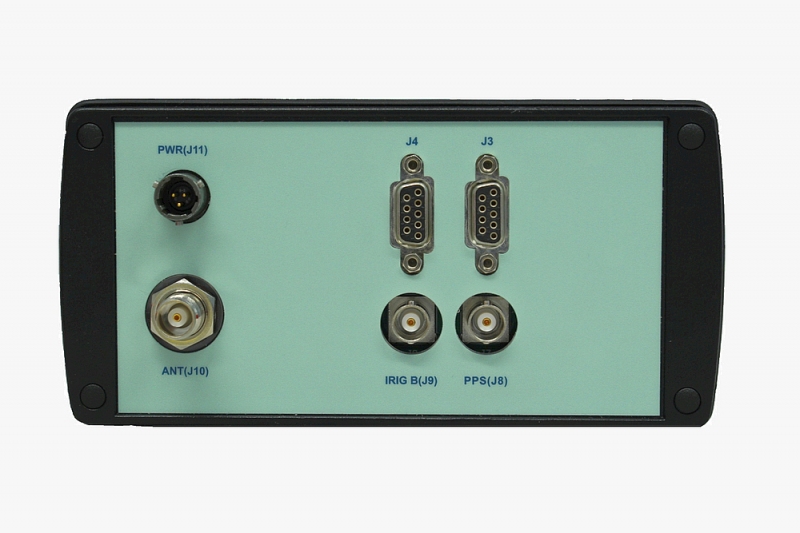

- External frequency I/O - Two high speed RS 232 ports - One Ethernet interface - IRIG-B 1kHz modulated time code output - 1 PPS output - IEEE 1588 Master Clock - Event Marker - CF data recorder for CompactFlash cards
|
Applications
When a base unit is needed as reference station for real-time/post-processing differential GNSS correction, gle/GXX/001 is the natural ground companion of our gle/RGU/GXX/001 onboard & rugged multi constellation GNSS receiver.
Typical uses are in the testing of armoured and heavy-duty military and civil vehicles, flight testing and certification of manned and unmanned aerial platforms, ship and vessel trials …
Benefits
- Tracking of multiple constellations provides better availability of GNSS signals.
- Tracking of L1/L2/L2C and L5 signals provides better accuracy.
Overview

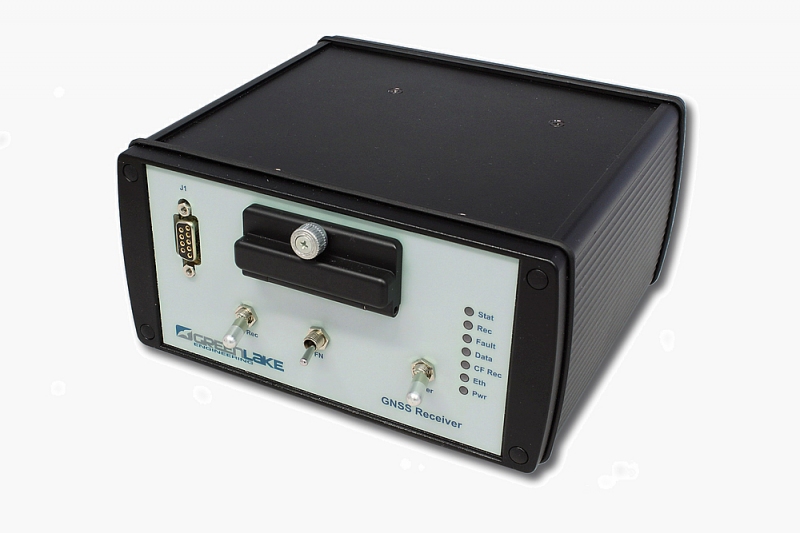

gle/IGU/GXX/001 is a compact, industrial grade GNSS receiver unit mainly intended as a ground reference station for on board instrumentation and testing purposes.
It is based on well proven and extremely powerful GNSS-receiver board series with a total of 216 receiving channels.
It features single or triple frequency GPS, Galileo, GLONASS and SBAS, in a small and robust aluminium enclosure.
It can be powered by a wide DC input voltage range.
Control and data communication are supported by RS 232 and Ethernet interfaces.

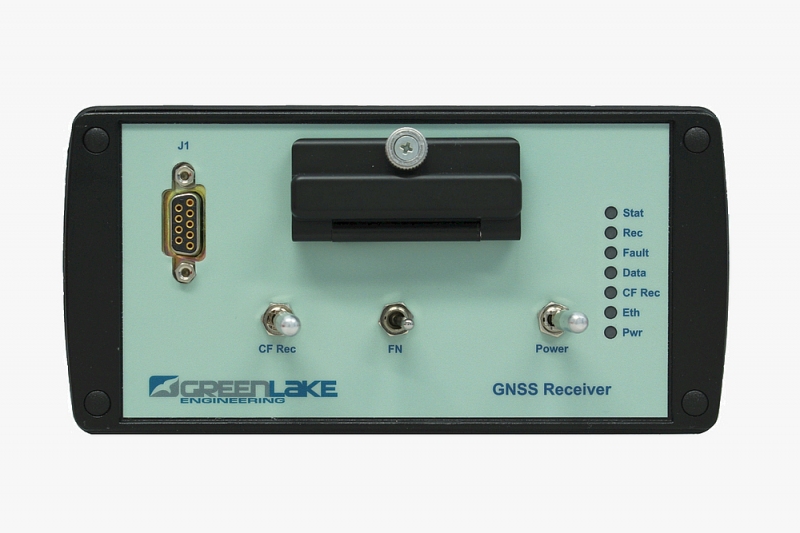

Main functions can be controlled by front panel.
Besides to the possibility of a large internal data storage capacity, it includes a CompactFlash data recorder with a CF slot, accessible from the front panel door.
Raw data are stored in efficient binary JPS format that can be directly processed or converted to RINEX by means of a software tool. As an option a specific software package for data processing, including RTK correction, can be supplied.
This product is not intended for applications whose its failure to perform can be expected to cause damages to properties and/or persons and/or injury to human life.
