gle/SDR+/002

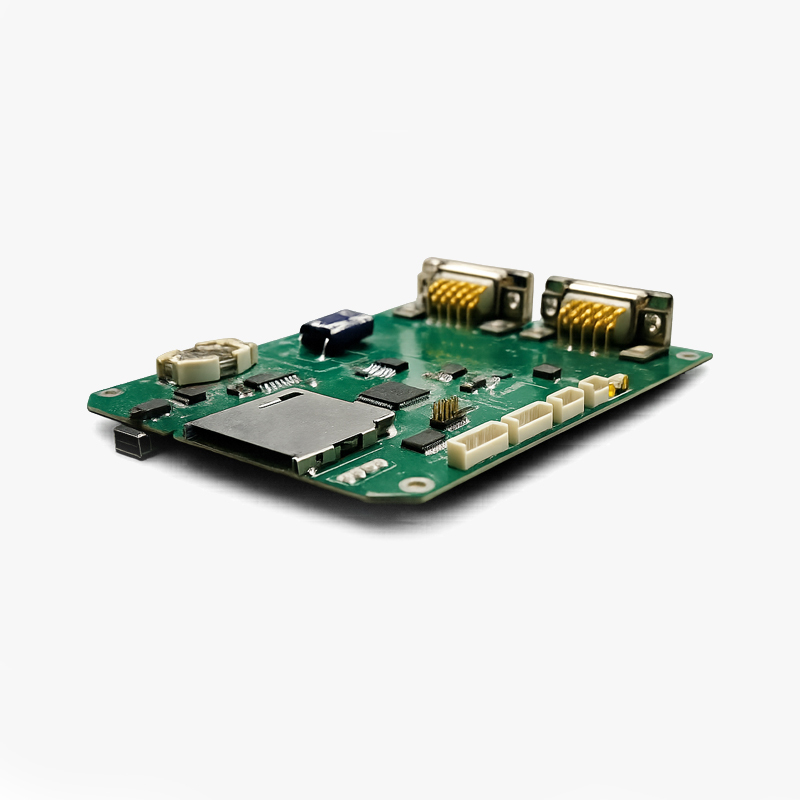

OEM board, RS 232 recorder for asynchronous serial data streams
Main Features • From 300 to 921600 bps • Up to 64 GB removable SD / SDXC Card • FAT32 / exFAT file system • Small dimension, rugged construction • Wide temperature range • Extended power supply range • Low power consumption • Built-in SuperCap UPS prevents file corruption • Front switch near SD slot to auto-close file being recorded • Local or remote control / status indications • Setup through rear RS-232 serial port or front USB connector |
Overview
gle/SDR+/002 is a standalone and rugged solid-state serial data recorder. It is a convenient solution to store
RS-232 data, accordingly to FAT32 / exFAT file system, on SD/SDXC card.
It can be easily used in combination with a variety of systems equipped with a standard asynchronous serial interface.
It can be setup through rear RS-232 serial port or front USB connector.
By using a PC terminal software, it is possible to setup the data port settings, set date and time and manipulate the storage media.
gle/SDR+/002 features a real-time clock with internal battery backup, to timestamp the file when recording starts. A built-in SuperCap based UPS prevents file corruption, by automatically stopping recording and closing the file in case of power outage.
Control is possible from front side, that includes a recording start/stop switch and status indicators or via remote control port that duplicates front panel functions.
