gle/GPS-IRIG-ENC-100-OEM

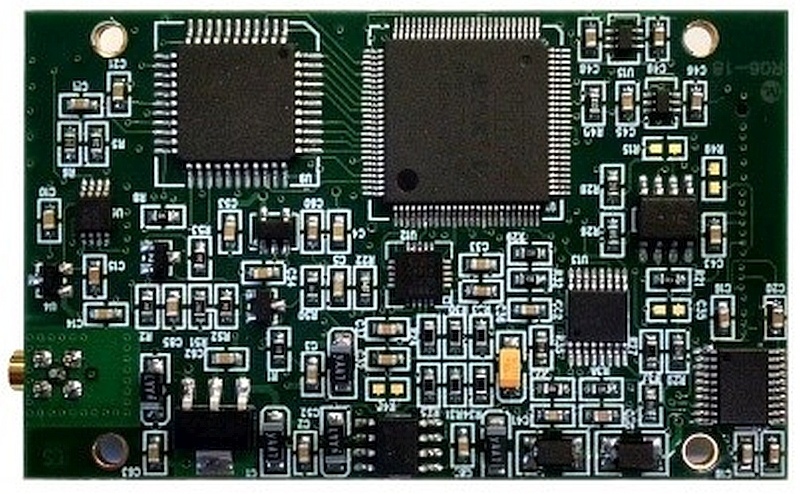

GNSS based IRIG B/G Time Code Generator board
Main features • Embedded 72 Channels GPS L1, GLONASS L10F, BeiDou B1 receiver • High accuracy VCTXO oscillator disciplined to GNSS receiver • Selectable IRIG-B or IRIG-G time code generator • Amplitude modulated and DCLS timecode output • 1 PPS output • Serial NMEA 0183 output, including GPS/UTC Time & Position • UTC time synchronization • IRIG timecode offset can be applied in term of HH:MM • Adjustable output level for IRIG modulated signal • Selectable PPS rising/falling edge • Leap second determination based on GPS/GLONASS integration • RS232 setup port for configuration |
Applications
OEM solution, easily integrated in demanding systems
Overview
gle/GPS-IRIG-ENC-100-OEM is a flexible, compact, selectable IRIG B or G encoder in a small footprint board, with an embedded GNSS receiver.
Designed for easily OEM integration, it has multiple output interfaces: choice of
AM modulated or baseband IRIG DCLS timecode signals, as well as 1 PPS digital output and NMEA0183 RS232 time and position information.
Control and data communication are supported by a RS232 interface.
Small form factor, low power consumption, and a widely available +5V power supply allow a hassle-free OEM system integration.
Main characteristics
|
Modulated IRIG Format |
B126; G146; |
1 kHz 100 kHz |
AM Modulated BCDTOY, BCDYEAR; |
|
Modulated IRIG Level |
Adjustable from 2Vpp to 5Vpp (Mark), unloaded, in sixteen steps |
||
|
Baseband DCLS IRIG Format |
B006 G006 |
100 Hz 10 kHz |
BCDTOY, BCDYEAR; |
|
Baseband DCLS IRIG Level |
TTL (>3V @ 50 Ohm load) |
||
|
IRIG Time Offset |
Max ± 12 Hours in HH:MM format |
||
|
1 PPS |
Selectable between rising and falling edge |
||
|
1 PPS Level |
TTL (>3V @ 50 Ohm load) |
||
|
NMEA 0183 |
RS232, 19200 Baud, 8 bit, no parity. $GNRMC,$GNVTG,$GNGGA,$GNGSA,$GPGSV,$GNGLL,$GNZDA |
||
|
GPS Engine |
Embedded 72 Channels GPS L1, GLONASS L10F and BeiDou B1 receiver |
||
|
Timing Accuracy |
+/-0.5 PPM (when not locked to GPS / over the entire temp. range) |
||
|
Setup port |
RS232, 9600 Baud, 8 bit, no parity |
||
|
Power supply |
+5V, 120mA |
||
|
I/O connector |
40 pin plug double row 1.27 mm pitch |
||
|
Antenna connector |
MMCX socket |
||
|
Physical |
PCB 65 x 40 x 7 mm excluding antenna and I/O connector |
||
|
Options |
Most of the optional features and functions can also be added later on, directly in the field. |
||
This product is not intended for applications whose its failure to perform can be expected to cause damages to properties and/or persons and/or injury to human life.
