gle/PCM-BUF/100


Applications
• Telemetry Ground Stations
• Avionics Test Rigs
• Test & Instrumentation
• Data Processing

Overview

gle/PCM-BUF/100 unit is a dual “one to four” buffer designed to split two independent high speed signals, typically used in telemetry applications.
The unit is designed to fit into an EIA standard 19" rack and occupies 1U of space.
Standard power supply is 100-240 VAC / 47-63 Hz, power consumption is less than 15W.
A 50Ω termination resistor can be enable by an internal switch on each input.



Compact and rugged, DC powered and extended temperature versions are also available; refer to gle/TBM/100.

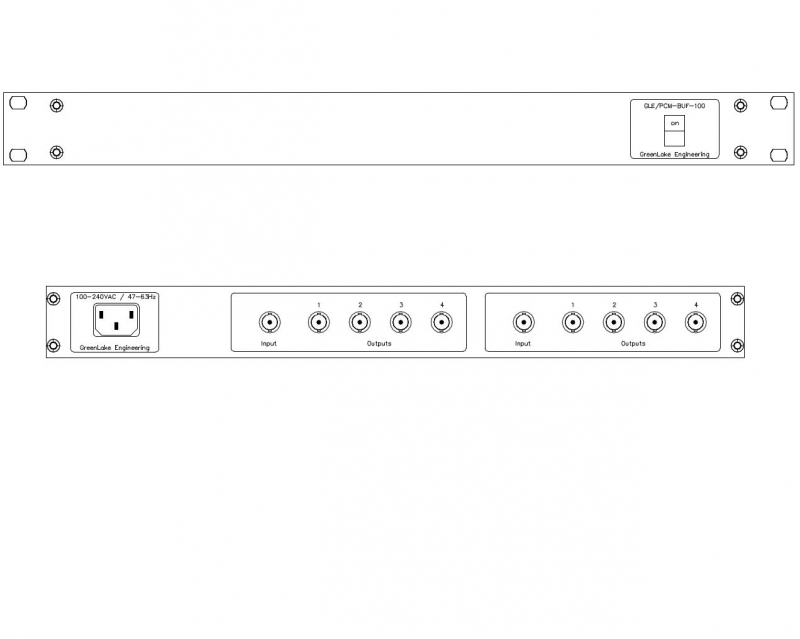

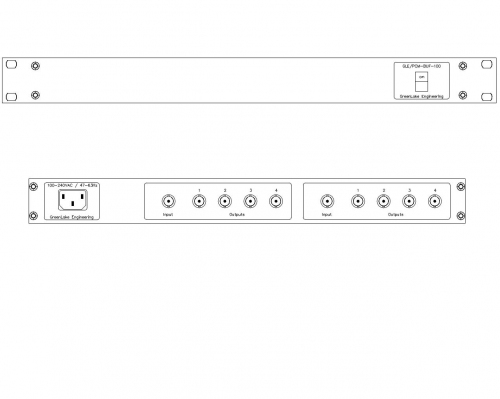

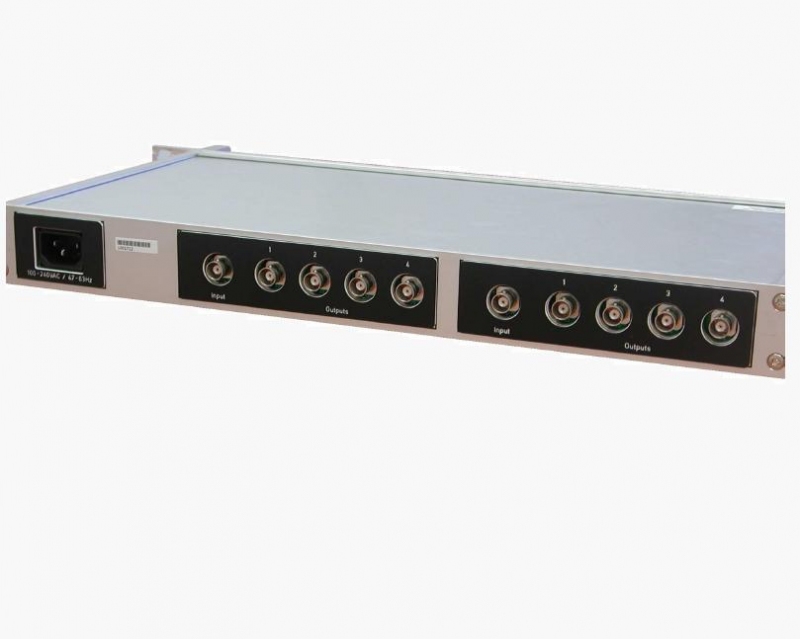

Front and Rear View
