gle/BIM-102
Mil-Bus 1553 Isolation Module
Main Features • Two Mil-Bus 1553 isolation channels • Two buffered outputs per channel • Compact and rugged construction • Stackable for multi-channel configurations |
Applications • Flight testing • Mission data monitoring • Avionics test rigs |
Overview

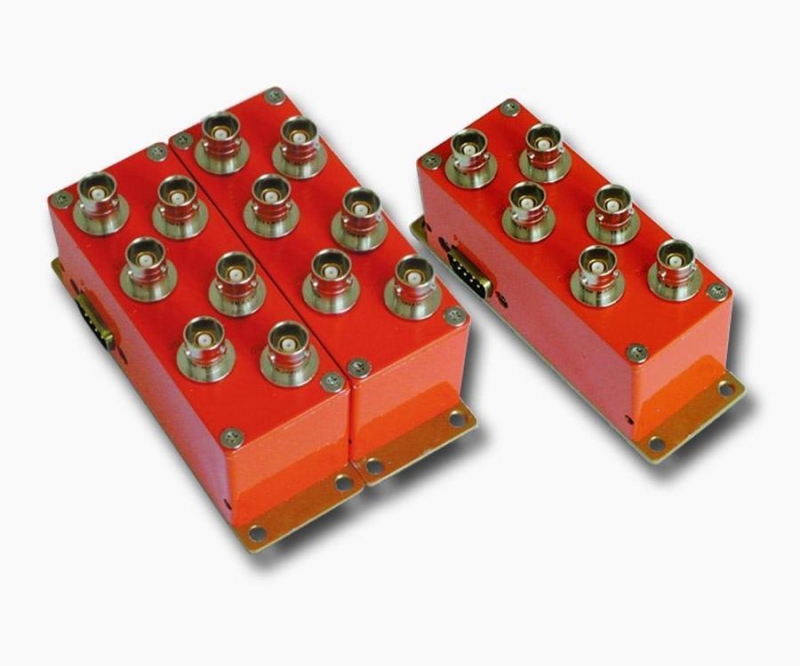

gle/BIM-102 is a rugged and compact unit designed to isolate, split and buffer a dual redundant Mil-Bus 1553, in order to connect two redundant buses monitor on a single redundant external bus coupler.
All Mil-Bus 1553 I/O are done via Trompeter Twinaxial connectors, while the power supply is pass-through by means of D-Sub connectors, in order to stack multiple units with only one power supply connection.
Each I/O connection has its own Mil-Bus 1553 isolation transformer.
Each input requires a Mil-Bus 1553 external coupler.
gle/BIM-102 units have been used to support data acquisition tasks within the flight testing and certifications activities of military aircrafts, as for example EFA Typhoon.
Technical Specifications
|
Input |
Redundant Manchester II Biphase Level Mil-Bus 1553, 30 Vpp max. It is required the use of a Mil-Bus 1553 external coupler on each input. |
|
Output |
Redundant Manchester II Biphase Level, 12 Vpp max. |
|
Power supply |
19 ÷ 35VDC, 3 Watt max/unit. Up to 12 units can be stacked together and powered from the same DC source. |
|
Enclosure |
Electroless nickel plated aluminum case orange painted. 90 x 40 x 35mm / 200 grams, excluding mounting flange. |
|
Operating Temperature |
Operating: -40 ÷ +85°C |
|
Humidity |
0 ÷ 95% RH |
|
Altitude |
Up to 65.000 ft |
Due to continuous developments, specifications are subject to change without prior notice. This product is not intended for applications whose its failure to perform can be expected to cause damages to properties and/or persons and/or injury to human life.
