gle/CNT-200
Rugged & Customizable Serial Interface Controller / Protocol Converter
Main Features · Input/Output RS 232 / 422 interfaces · Isolated input RS 422 interface · Baud-rate selectable from 2400 to 921600 · Customizable firmware and software · Protocol conversion (e.g. ASCII to Binary format) · Interrogation of RS 232 / 422 sensors / devices · Programmable bits selection / 32 bit TTL output port · Rugged construction, small form factor · Extended temperature & power supply range |
Applications Instrumentation and testing, onboard and in harsh environments: · armoured and heavy-duty military and civil vehicles · flight testing / certification of manned & unmanned aircraft · railway vehicles testing · ship and vessel trials … |
Overview
gle/CNT-200 is a family of well proven, compact and rugged units able to parse parameters from a RS 232 / 422 data stream, format and send them to serial RS 232 / 422 outputs; e.g. parse and convert ASCII data from a NMEA GPS stream to binary and output them on a RS 232 i/f for further acquisition tasks.
An auxiliary dual RS 422 output i/f can be used to buffer the RS 232 input.
Moreover, the unit can be programmed to interrogate a specific RS 232 / 422 sensor / device and/or to select up to 32 bits to drive a TTL logic port. A bi-color LED indicator shows lock or error status.

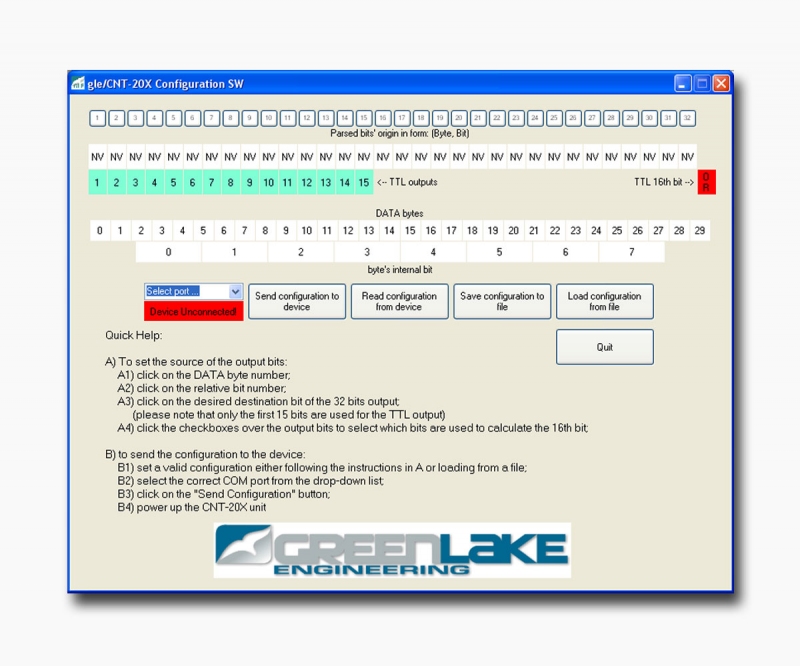

Custom firmware and software can be developed for particular needs.
For example, different customized variants of gle/CNT-2xx are used to support data acquisition tasks within the flight testing and certifications activities of various civil and military aircrafts, including EFA Typhoon.

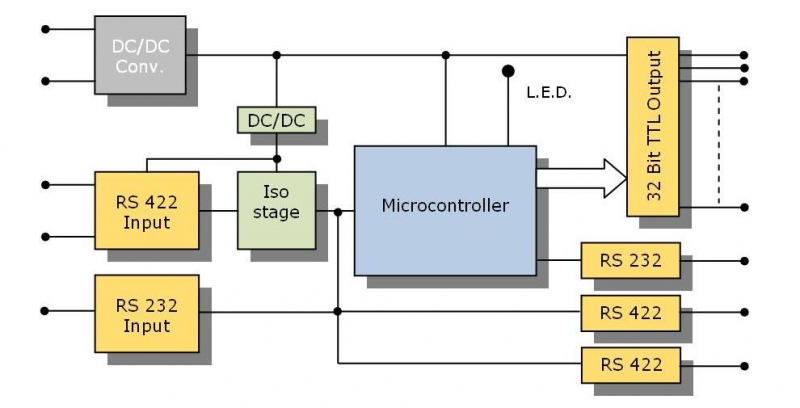

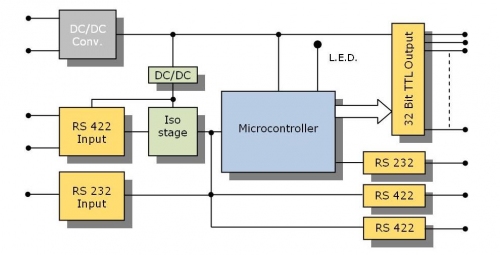

Block Diagram
Environmental information
|
Power supply: |
19…35VDC; approx 1Watt |
|
Enclosure: |
EMI shielded, electro-less nickel plated aluminum case, orange painted |
|
Temperature range: |
-40 ÷ +80°C (operating) |
|
Humidity: |
0 ÷ 95% RH (operating) |
|
Altitude: |
up to 65000 ft (operating) |
Due to continuous developments, specifications are subject to change without prior notice. This product is not intended for applications whose its failure to perform can be expected to cause damages to properties and/or persons and/or injury to human life.
