gle/HD-RVC-510

Ruggedized High Definition Video Camera


Main Features

· Compact, Full-HD (1920x1080) colour video-camera

· HD-SDI digital output on single coaxial cable

· Hi-G construction, one piece camera, no external control box

· Integrated motorized 3x zoom lens

· Manual & automatic exposure IRIS/shutter control

· Manual & triggered auto focus

· Very high light sensitivity with selectable IR / Colour mode

· Wide dynamic range and Noise Reduction Function

· Electronic image rotation and mirroring

· Setup software GUI of all camera functions

· Setup and control via RS232 or via contact interface

· Different memory presets

· Aanti-reflective black anodized enclosure

· Fully environmentally protected, camera body and lens

· Wide operating temperature range

· Extended DC voltage supply range

Applications



· Flight Testing Instrumentation

· Stores / Payloads separation

· Head-Up Display

· Cockpit Video Recording

· Video monitoring

· Surveillance in Harsh Environments

· Vehicle testing

Overview

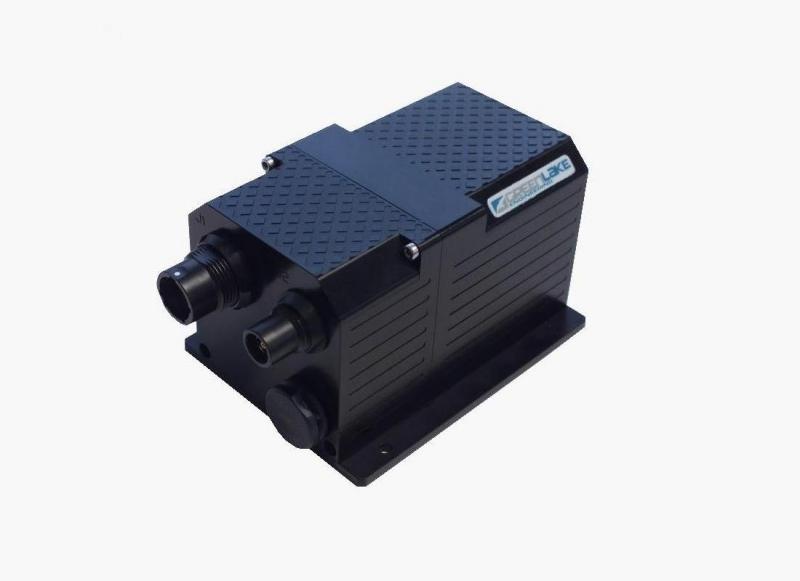

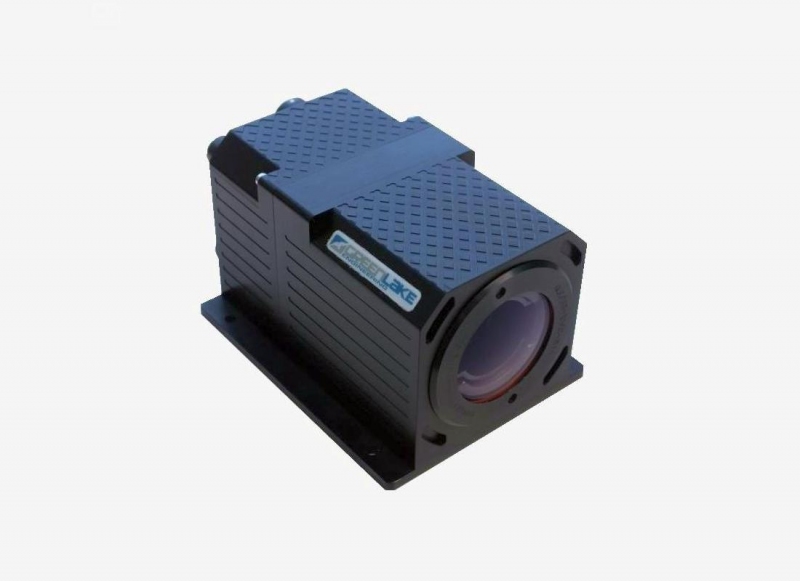

gle/HD-RVC-510 is a compact and rugged, self contained motorized lens, high definition color video camera that offers very high flexibility.
It is specifically designed for night/day onboard instrumentation & testing applications and is a single piece camera, no external boxes are required, such as electronics control units or power supplies.
It is provided with a high definition HD-SDI digital video output, compliant with SMPTE 274M and SMPTE 296M, available on a coaxial connector.

Operations are very simple, it is possible to setup and control all the functions via a standard RS-232 interface.

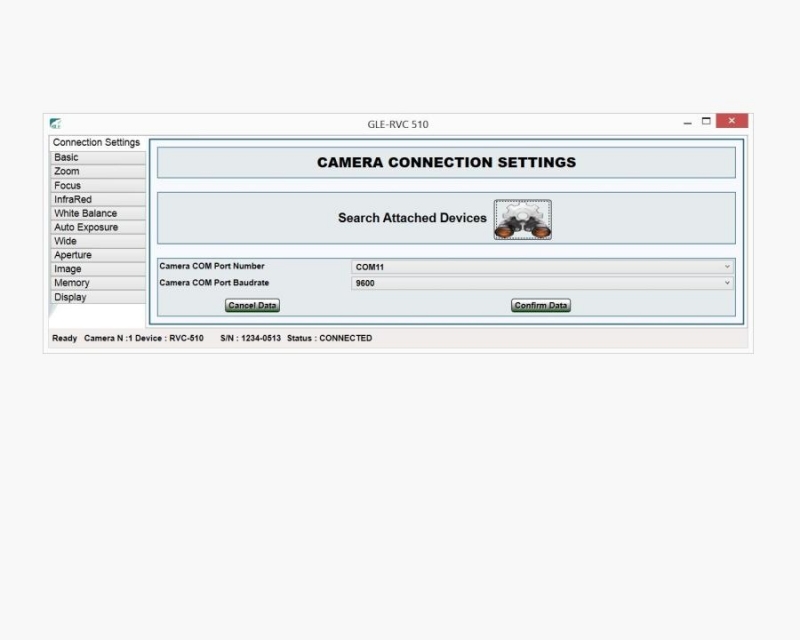

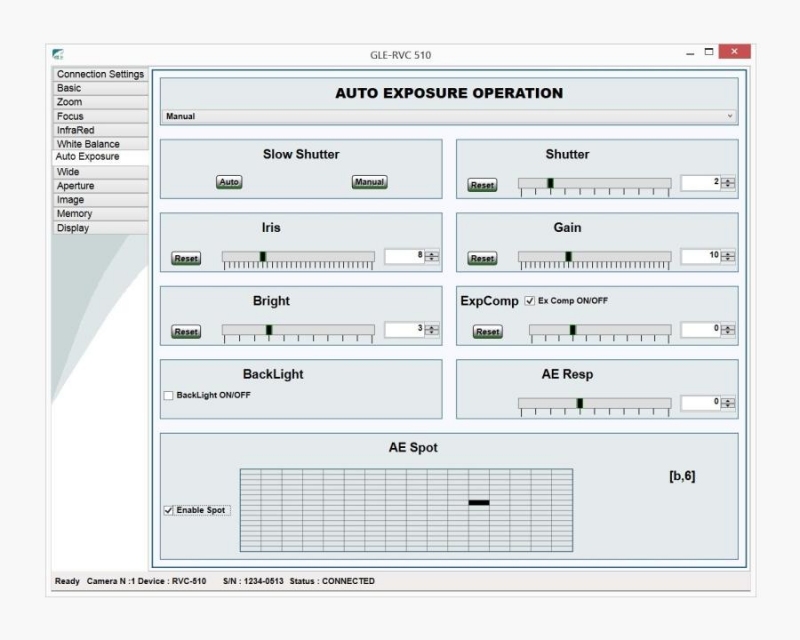

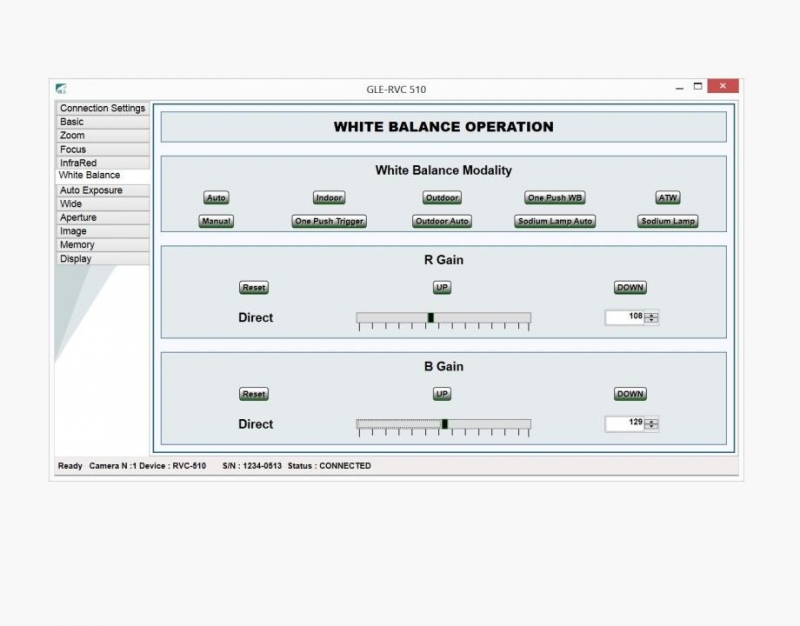

The software GUI for Win XP / 7 / 8 allows the easy setup of all camera functions via RS232, it provides the following sections: Connection settings, Basic-Setup, Zoom, Focus, Infrared, White balance, Auto Exposure; Wide, Aperture, Image, Memory, Display titles.
A contact port allows to recall one of four presets and to control the main camera settings as focus and zooming.

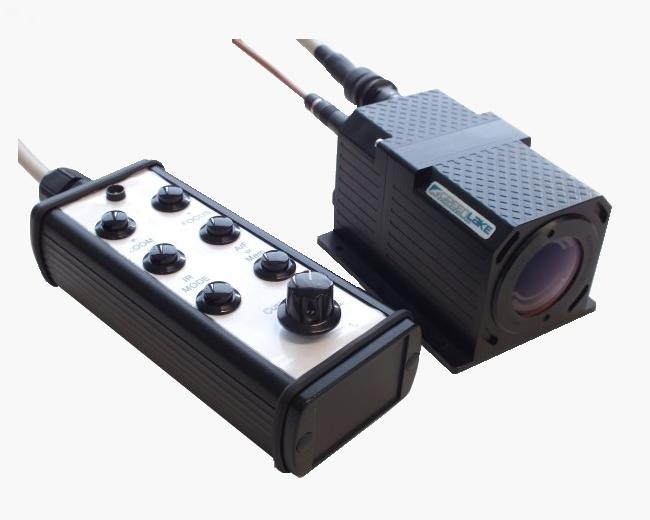

gle/HD-RVC-510-HDC is a Handheld Remote Control that can be provided as option.

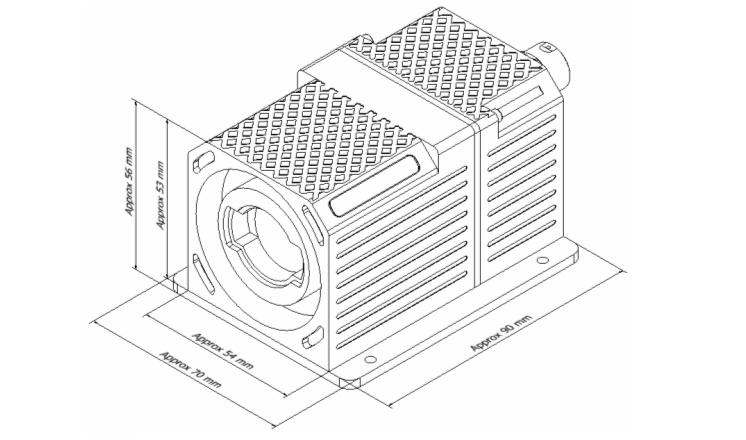

Mechanical details



This product is not intended for applications whose its failure to perform can be expected to cause damages to properties and/or persons and/or injury to human life.
