gle/RGM/G2T/HDA

Space-Proven Miniature GNSS Receiver




Standard  Features

GPS L1/L2/L2C/L5

• High dynamic satellite tracking & position computation

Miniature, lightweight and rugged construction

• Qualified for : high level sine & random vibration

                          : pyroshock

                          : thermo-vacuum

• Receiver Autonomous Integrity Monitoring (RAIM)

• Advanced multi-path reduction

High speed RS232 / USB control and data I/O ports

Fully configurable receiver parameters

Update rate up to 100Hz

Wide temperature range

Extended DC voltage supply range

Optional Features (*)



GLONASS L1/L2

Galileo E1/E5A

WASS/EGNOS (SBAS)

RTK rate up to 100Hz

Code Differential Rover / Base

Heading determination

Additional RS 232 / 422 ports

CAN interface port

IRIG-B, 1kHz time code output

1 PPS output

Event Marker

Internal storage memory

(*)Available features depend on specific

GNSS-receiver board and selected options



Overview

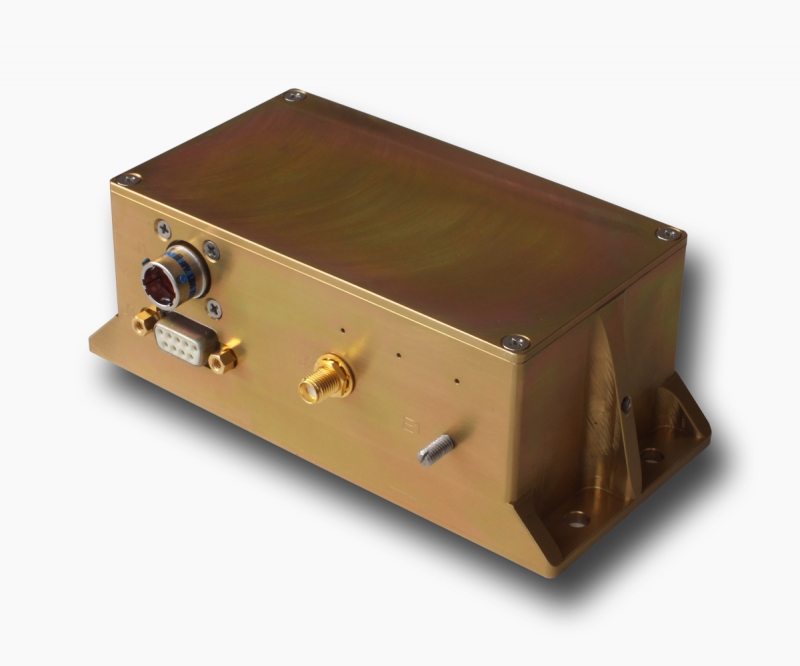

gle/RGM/G2T/HDA is a cost-effective, high-performance, miniature and rugged GNSS receiver specifically designed and environmentally qualified for space applications. It has been successfully used on a primary space-launcher program.

It is based on a well proven and extremely powerful GNSS-receiver board with a total of 24 universal receiving channels each of GPS L1/L2/L2C/L5.

Thanks to advanced and tunable algorithms, it supports satellite tracking under extreme dynamics (acceleration and jerk), allowing  reliable and high accuracy position computation over almost unlimited altitude and velocity (for authorized users).

The unit is built in a very compact, EMI shielded and rugged, ergal alloy milled enclosure.



Applications



Even if originally designed for test and instrumentation applications onboard space launcher vehicles, it is also suitable to be used on, manned or unmanned, civil / military aircrafts and armoured / heavy-duty vehicles.

In these applications it is possible to take advantage of many optional features such as listed above.

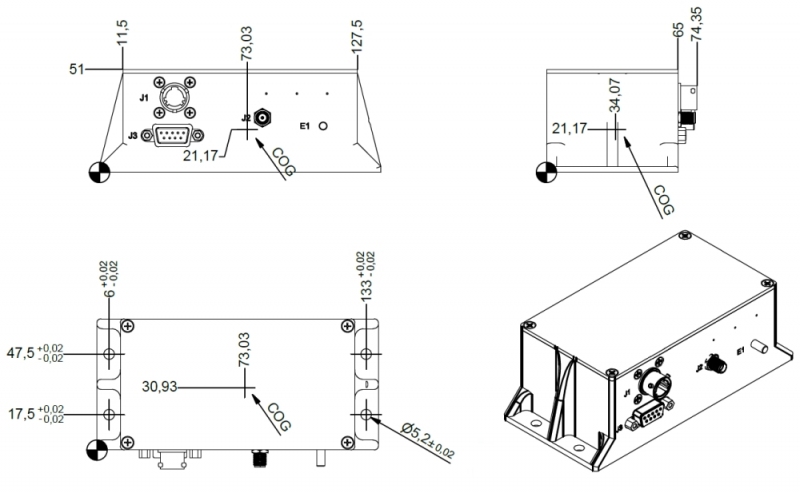

Mechanical Details



This product is not intended for applications whose its failure to perform can be expected to cause damages to properties and/or persons and/or injury to human life.
