gle/RGU/Gxx
Ruggedized Multi Constellation GNSS Receivers
Available Features (*) • Compact and rugged construction • Designed to meet MIL-STD specifications • In-band interference rejection • Update rate up to 100Hz • RTK rate up to 100Hz • Heading determination • Code Differential Base • High speed RS 232 / RS 422 bi-directional ports |
• RS 232 telemetry data port • Ethernet interface • IRIG-B 1kHz modulated time code output • 1 PPS output synchronized to GPS, GLONASS or UTC • Internal data recorder on CompactFlash card • GLONASS .2mm Dynamic Calibration • Spectrum Data Output • PTP IEEE 1588: Precision Clock Synchronization Protocol • Upgradeability in the field for most of the optional functions
(*) Available features are depending on specific model and by selected options. |
Applications
On-board instrumentation for testing in harsh environments: armoured and heavy-duty military and civil vehicles testing, flight-testing and certification of manned and unmanned aerial platforms, ship and vessel trials …
Benefits
• Tracking of multiple constellations provides better availability of GNSS signals.
• Tracking of L1/L2/L2C and L5 signals provides better accuracy.
• Multiple I/O interfaces provide great flexibility.
Overview
gle/RGU/Gxx are flexible, compact and rugged GNSS receivers, designed for on board instrumentation and testing testing purposes, designed to operate under demanding environmental conditions.
Based on well-proven, extremely powerful GNSS-receiver boards with up to 864 universal receiving channels.
Are available three different basic models: gle/RGU/G2T, gle/RGU/G3N and gle/RGU/G30.
In a small, EMI shielded and rugged enclosure, they feature single or multiple frequency: GPS, Galileo, GLONASS, BeiDou, QZSS, IRNSS and SBAS.
They work in an extended temperature range, under severe mechanical and environmental conditions and and equipped with a wide input DC voltage range power supply, designed to meet MIL-STD specs.

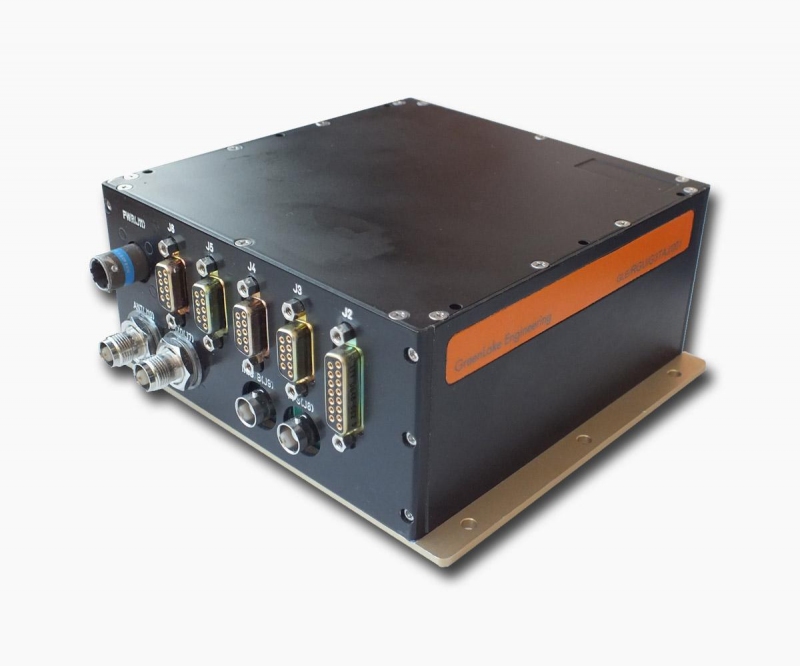

RS 232, RS 422 and Ethernet interfaces, support control and data communication.

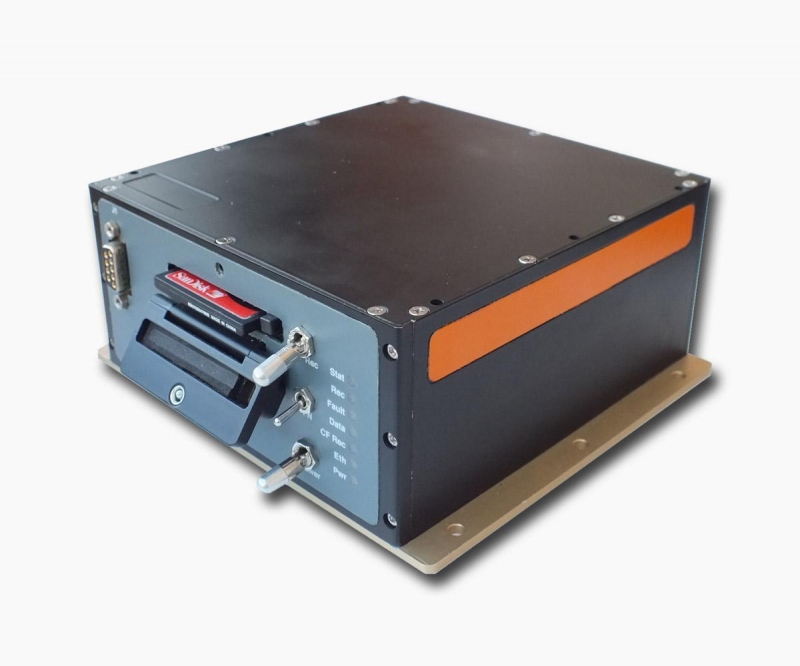

Main functions can be controlled by front panel or by a remote contact port.
In addition they incorporate an ASCII NMEA-0183 to binary format converter that generates a simplified RS 232 protocol, easy to be acquired and transmitted over a Telemetry/PCM stream.
Besides, to the possibility of a large internal data storage capacity, they include a CompactFlash data recorder, with a CF slot accessible from the front panel.
Raw data are stored in efficient binary JPS format that can be directly processed or converted to RINEX by means of a supplied software tool.
As an option, can be supplied, a specific software package for data processing, including RTK correction.
gle/RGU/Gxx/001 receivers have been used for flight testing and certifications activities onboard to various civil and military aircrafts, including Tornado, EFA Typhoon and C-27J.
This product is not intended for applications whose its failure to perform can be expected to cause damages to properties and/or persons and/or injury to human life.
