gle/TCD-100

Miniature Onboard Time Code Display

Main features

· IRIG-B / NMEA Time Decoder / Reader

· Miniature size, Solid & Rugged construction

· Front panel user adjustable intensity

· High stability internal clock

· Wide DC voltage supply range

Applications

Instrumentation and testing, onboard & in harsh environments:

· armoured and heavy-duty military and civil vehicles

· flight testing / certification of manned aircraft

· railway vehicles testing

· ship and vessel trials …

Overview

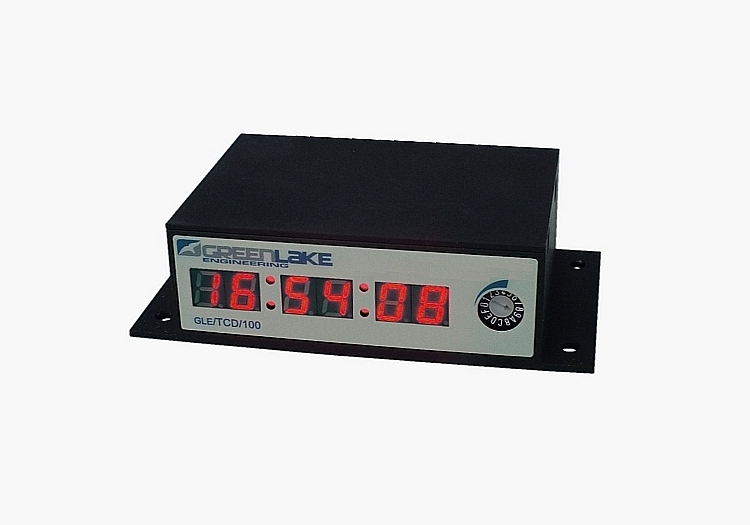

gle/TCD-100 is available in three variants that support different kinds of time source. This unit decodes and displays the input time as Hours, Minutes and Seconds on a six digits LED display as HH : MM : SS.
Its intensity is user adjustable via a front panel selector switch.
In the absence of an applied time source input it shows the internal clock and the displayed colons flash at 1Hz rate.
GLE/TCD-100 is housed in a robust flange mountable milled aluminum enclosure, designed to meet “Safety of Flight” requirements.

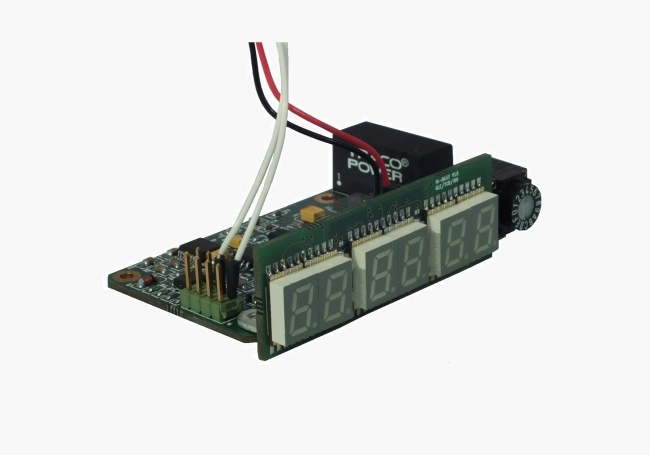

gle/TCD-100-OEM is the board-level version of the gle/TCD-100 Time Code Display, it provides time visualization capability for existing or new OEM products. Different display sizes and LED colours are available on request.

Technical Specifications

Time Input	gle/TCD-100-B01 () IRIG B122 1 kHz Time Code, referred also as modulated IRIG B*.	gle/TCD-100-B02 IRIG B002 serial Time Code, TTL level. Referred also as non-modulated IRIG B.	gle/TCD-100-N01 GPS NMEA RS232 serial format, 4800 bps, GGA or RMC messages.
Display	Six character, seven segment, LED, Red. Character Height: 7.6 mm [0.3 Inches].
Intensity	Controllable by front panel. screw-driver, 16 positions/ rotary switch.
Internal Reference	Temperature compensated crystal oscillator, TCXO ± 5 x 10⁶.
Power Supply	10 to 36 Volts DC, approx 2 watts @ maximum brightness.

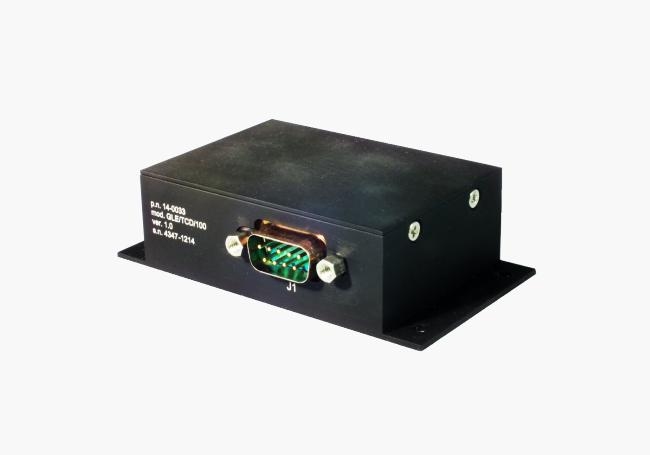

Enclosure	Milled aluminum black anodized, 90 x 25 x 50 mm (W x H x D) [approx. 3.5 x 1 x 2 inches], rear panel connector excluded.
Weight	Less than 100 grams [less than 3.5 ounces]
Temperature Range	Operating -10°C to +60°C
Humidity	0 ÷ 95% RH non-condensing
Acceleration	Designed to withstand up to 20 g in all directions
Vibration	Designed to withstand up to 20 g per MIL-STD 810F
Shock	Designed to withstand up to 40 g per MIL-STD 810F
