gle/SCB-100


• CAN 2.0B protocol compatibility up to 1Mb/s

• Standalone operation
• Isolated ISO 11898 transceiver
• RS 232 input interface up to 115.2 kBit/s

• Output  multiple messages
• Robust construction, small form factor
• Extended temperature range / Wide VDC supply range

• Data Acquisition

• Automotive Research & Development

• On-road Vehicles Testing
• Test Benches
• Factory Automation

• OEM transducers manufacturers

gle/SCB-100 is a cost-effective solution designed to connect virtually any RS 232 capable device to a CAN Bus, its operation is completely standalone, so it do not need to be connected to a PC.

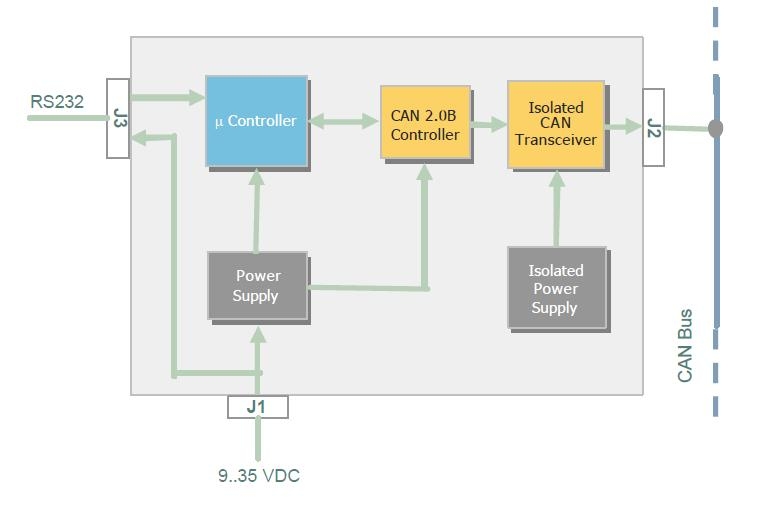

This unit includes a powerful microcontroller to synchronize and parse the incoming RS 232 data stream and a CAN 2.0B controller to send converted messages to a CAN Bus with a bit-rate up to 1Mbit/s.

CAN Bus interface is isolated to avoid ground loops and it is fully compatible with the ISO 11898 standard.

gle/SCB-100 offers a robust construction in a small aluminum enclosure as well a wide operating temperature range.



It can be programmed by user in order to support different asynchronous serial protocols sent from different devices, such measurement transducers or systems (GPS receiver, Inertial Systems, Pressure, Load, Displacement sensors …).

The user programs via RS232 the following Can Bus parameters: bit-rate, data frame format (standard 2.0A or extended 2.0B) and the identifier of each message.

Once it is programmed, the setup is automatically loaded at power up and this unit runs as a stand-alone interface box without the need of an external PC.



gle/SCB-100 HW and SW can be factory customized to meet various OEM necessities.





 Technical Specification

Input interface

RS 232 up to 115.2 kbit/s. Standard Firmware handles single binary packet (*)

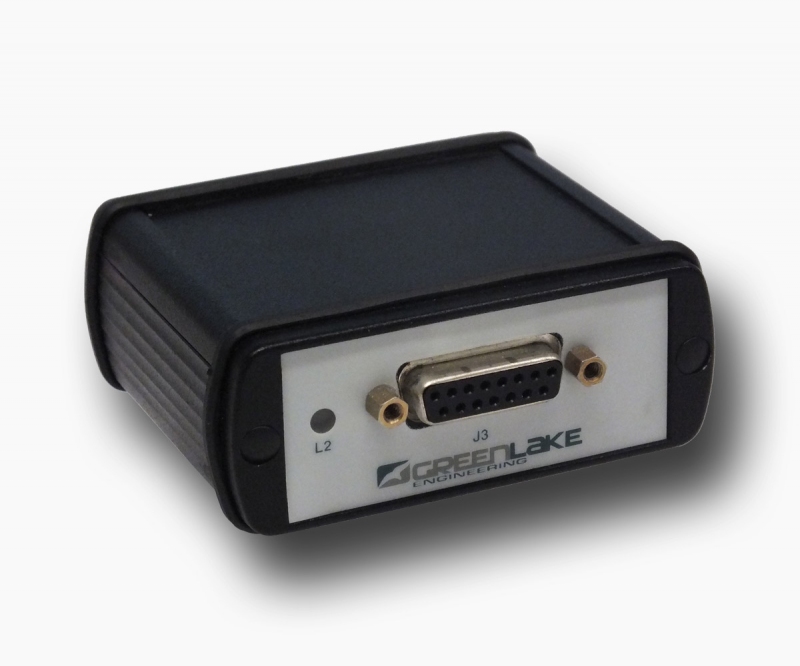

Input connector (J3)

DSUB 15 pin Socket (it also provides power supply to the RS 232 device directly derived from the input power connector).

Output interface

Isolated CAN 2.0B 1Mbit/s ISO 11898

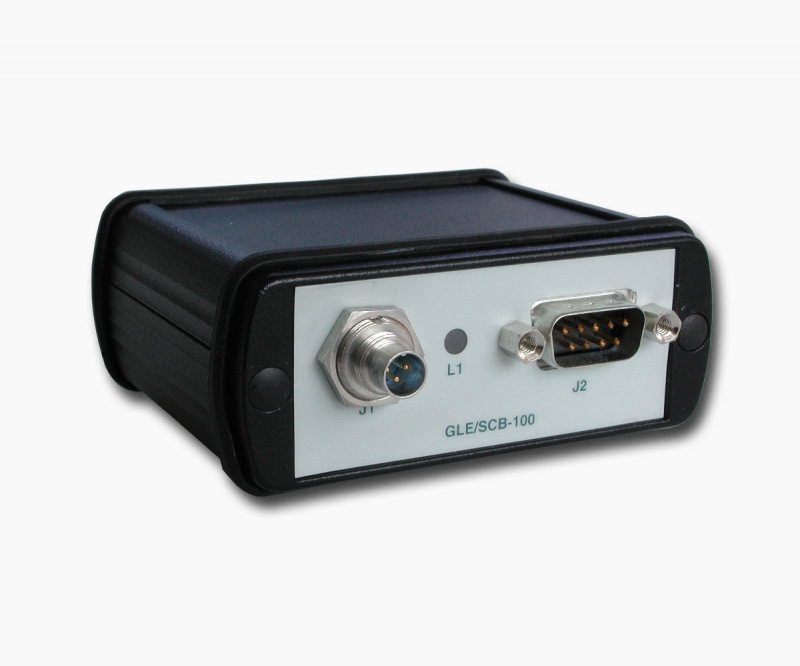

Output connector (J2)

DSUB 9 pin Plug

Output messages

up to ten CAN messages

CAN Bus

SJW=1, Sampling point 75%, single sampling

Status indication (LEDs)

Power on, RS 232 sync OK and CAN TX activity

Operating Temperature Range

-40...+85°C

Power supply (J1)

9...35 VDC, 0.8 W

Power supply connector

TRIAD 01, 3 pin plug

Mechanical Construction

EMI shielded aluminum enclosure

Dimensions

82 x 32 x 70.4 mm   (W x H x D) approx

Weight

Approx 160 grams (excluding mating connectors)



(*) Contact factory for different RS 232 protocols.



Mating connectors



Included

Power supply cable

2 meters with banana plugs

Included

Programming cable

2 meters

Included

External power supply, wall mount

Input 110-230VAC - output 12VDC

Option

Custom cabling harness for MEMSIC 400, 420 or 440 series inertial units

Length to be specified

Option

Mounting Flanges



Option

RS 422 input instead of RS 232 input



Option



Due to continuous developments, specifications are subject to change without prior notice. This product is not intended for applications whose its failure to perform can be expected to cause damages to properties and/or persons and/or injury to human life.
