Main features

Seventy-two channels GPS L1C/A, GLONASS L10F, BeiDou B1 receiver

• Selectable IRIG-B or IRIG-G time code generator, AM or DCLS out.

• UTC time synchronization with programmable ±12 hours offset

• 1 PPS output.

• NMEA 0183 output, including GPS/UTC Time & Position.

• Internal rechargeable LiPo battery cell.


Time synchronization of stand-alondata acquisition equipment, installed on off-road, armoured, heavy-duty and railway vehicles, manned and unmanned aerial platforms, boats and vessels…

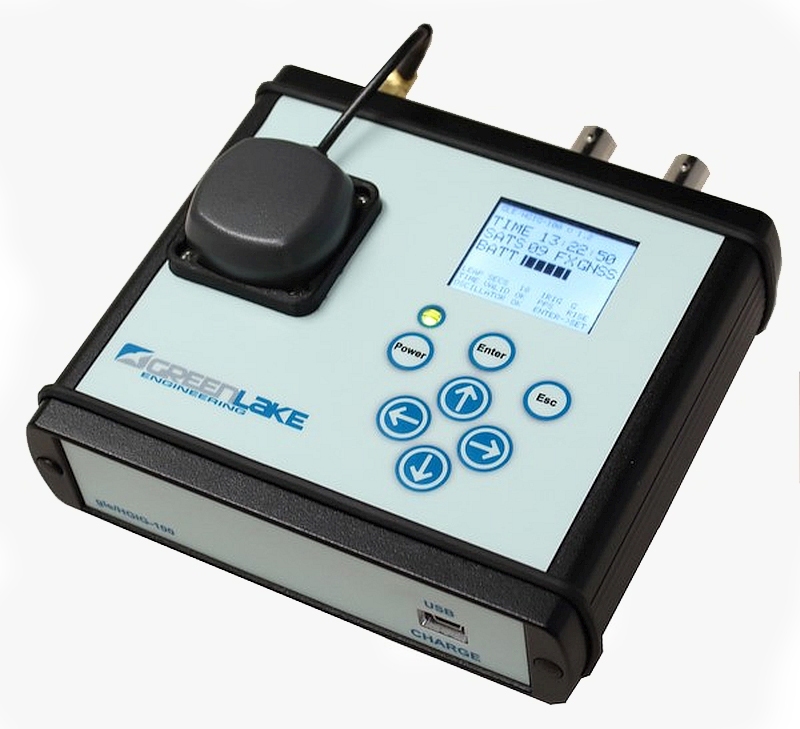

gle/HGIG-100v2 is a compact and robust UTC synchronized timecode generator, which provides IRIG B126 or G146 AM or DCLS,
1 PPS signal and NMEA 0183 output.
It is designed to accurately synchronize the internal time of standalone and mobile data acquisition equipment.
An offset (
± 12 hours max) can applied to the IRIG time code output.
The active GPS antenna, installed on the top panel, may be disconnected to use an external one.
If no GPS signal is received, gle/HGIG-100v2 switches to the internal clock and continues to generate the time without any significant change in the IRIG timecode and in the serial NMEA data stream. The unit is equipped of a 2000mAh LiPo battery.

Main characteristics

IRIG Output Format

B126 1kHz AM Modulated (optional G146 100kHz) or selectable DCLS without carrier

IRIG Output Level

AM:adj. from 2Vpp to 5Vpp (Mark), unloaded, in sixteen steps; DCLS: >3.0V (Typ.) @ 50 Ohm

IRIG Connector

BNC, 50 Ohm Impedance

IRIG Time Offset

Max ± 12 Hours in HH:MM format

1 PPS Signal Level

>3.0V (Typ.) @ 50 Ohm load

1 PPS Pulse Width

High for 500ms

1 PPS  Connector

BNC, 50 Ohm Impedance

NMEA 0183 RS 232 Output

19.2 kBaud, 8 bit, No Parity: $GNRMC, $GNVTG, $GNGGA, $GNGSA,$GPGSV, $GNGLL, $GNZDA

NMEA 0183 Connector

DSUB 9 Pin Socket

GPS Antenna

Active Type

GPS Connector

SMA Socket

Timing Accuracy

+/-0.5 PPM (when not locked to GPS / over the entire temp. range)

Nominal battery run time

More than 5 hours

Nominal battery charge time

5 hours (unit switched off)

Operating Temperature

-10 to +55 °C (During battery charging: 0 to +40 °C)

Dimensions (L x D x H)

140 x 120 x 51 mm (including GPS antenna, excluding connectors)
