HD-SDI Passive Video Splitter
Main Features • Passive HD-SDI video splitter for reliable signal duplication without active electronics • Splits one HD-SDI input into two full-quality outputs (SMPTE 292M, up to 1.485 Gbps) • No signal degradation or impedance mismatch thanks to 75 Ohm design • Supports cable lengths up to 30 m (with RG-6 type cable) • Low insertion loss (< 4 dB) for high signal integrity • Compact and ultra-rugged aluminum enclosure (EMI/EMC shielded) • Designed for harsh environments: -40°C to +85°C operating range • Shock & vibration resistant (MIL-STD-810F compliant design) • Lightweight design (< 200 g) for easy integration • Standard BNC 75 Ohm connectors for plug-and-play installation |
Applications
• Onboard and harsh environments instrumentation.
• Armoured / heavy-duty vehicles testing.
• Flight Testing / Certification of civil and military aircrafts.
• Railway and Automotive Testing.
Overview

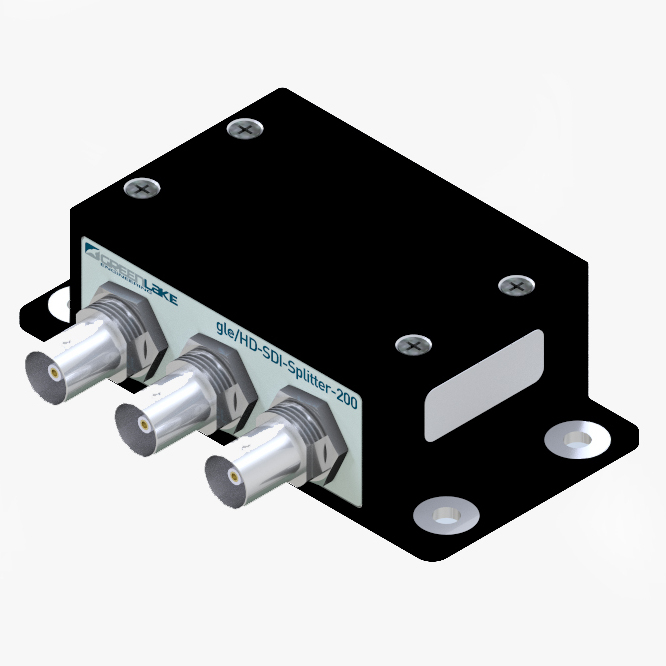

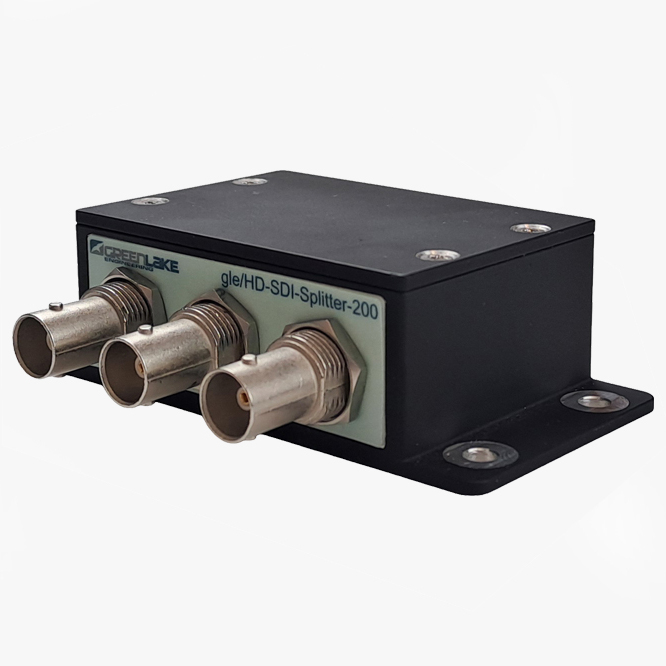

GLE/HD-SDI-Splitter-200 is an exceptionally robust and compact passive device designed to split a single source SMPTE 292M digital video signal, without interference or impedance-mismatch, into two full-quality video signals and send them over coax cable up to 30 m (*).
The unit has one input and two output BNC connectors, with 75 Ohm impedance characteristic.
(*) Using Belden® RG-6U - 1694A cable.
